The visualizer runs in the tab
No account, no upload, no server. The XML is read in the page, converted on this thread, and forgotten when the tab closes. The page’s own test fails on any request that is not one of its static assets.
For the team that keeps Oracle Forms running
Your Forms screens, in a browser, the way your people already know them.
Export a form from Forms Builder, drop the XML in the page, and see the screen your users have worked in for years: the same window, the same prompts, the same grid, the same keys. Nothing is uploaded, and nobody is retrained.

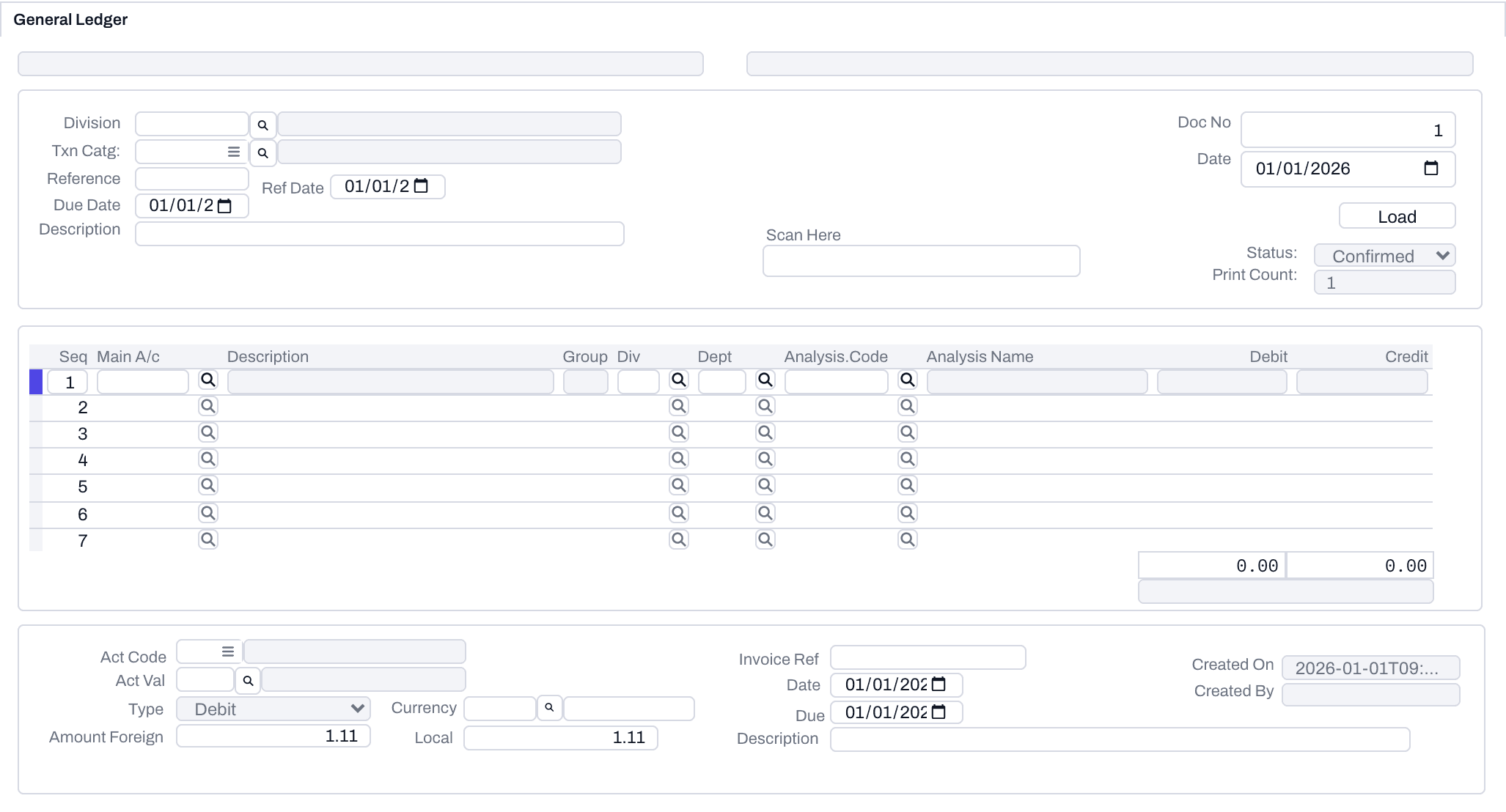

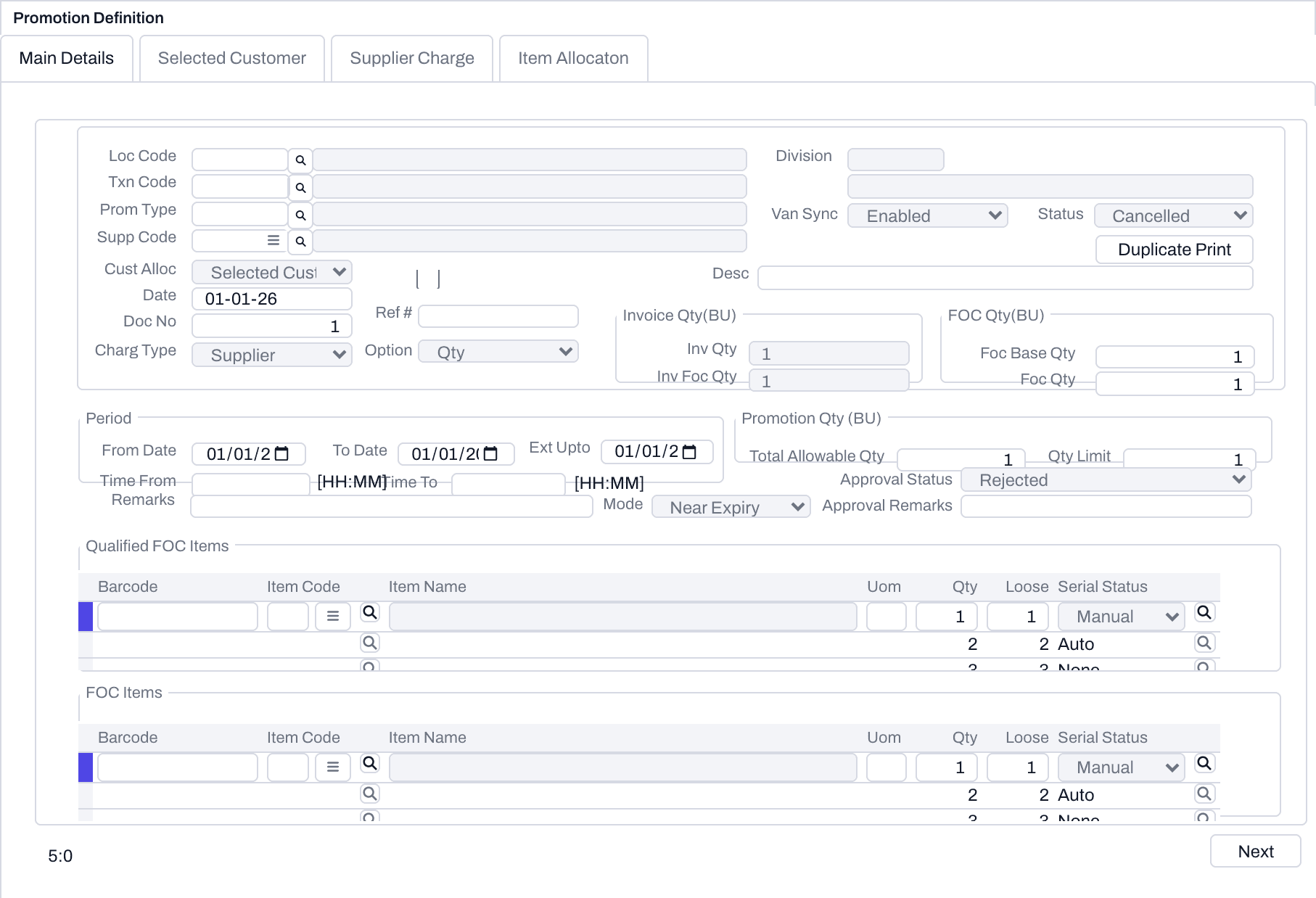

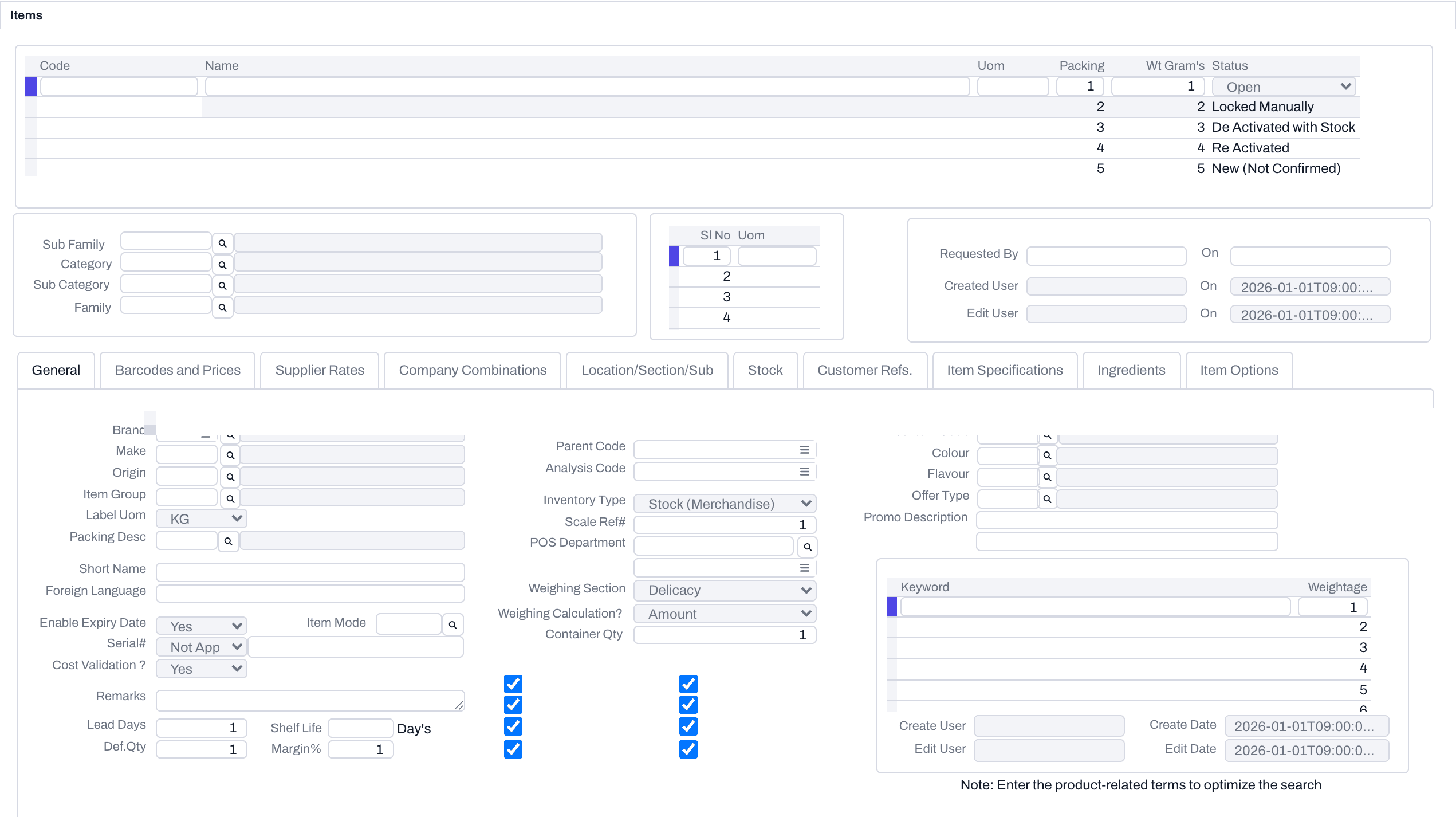

Three screens, converted as they are
Recognisable at a glance, because the arrangement is theirs.
Each screen below was read from a real Forms export and drawn by the engine the product ships: every field where the canvas put it, at the window’s own size, with generated sample rows and nothing of any customer’s data.
What your users keep
Hands that already know the screen.
Retraining is the cost nobody budgets. The screen is drawn at the size it has always been, with every prompt where Forms wrote it. A grid shows the columns Forms repeated, one line per record, with the current record marked at the left and a scroll bar when there are more records than lines. Forms’ own list icon opens the list. And the keyboard does what it did.
- Up, Down
- moves between records, staying in the same column
- Tab
- crosses into the next record where the block says Change Record
- Page Up, Page Down
- moves a screenful of records
- Ctrl+Down
- inserts a record after the current one and runs its new-record program
- Shift+F6
- duplicates the record above
- F6
- clears the record, and says whether anything was written
- Ctrl+K
- lists the keys the grid answers
For the IT administrator
Nothing leaves your browser until you decide it should.
It connects to the Oracle you run today
A connected account reads and writes your existing database through one pooled connection. Nothing moves and nothing is copied. Forms keeps running beside it, and your users switch over one screen at a time.
Your PL/SQL is never executed here
Every rule runs in our engine, as a clause with a test that reads its expectation from the trigger it came from. What the converter cannot express is listed with its source text, never dropped, and never run blind.
One trigger, before and after
The rules come across as rules. What does not is listed.
This is the division check on the ledger’s voucher header, exactly as the converter reads it: six clauses, every one verified against the PL/SQL, the two global writes included. A statement it cannot read is kept as text and listed.
What you haveWHEN-VALIDATE-ITEM
If :TH_Divn_Code Is Not Null Then
SELECT count(*) into v_count
FROM M_Company, M_Division
WHERE Comp_code = Divn_Comp_code
AND Divn_Comp_Code = :Global.Company
AND Divn_Code = :TH_Divn_Code;
IF v_count = 0 then
message ('Invalid Division code');
raise form_trigger_failure;
End IF;
SELECT Divn_Name, Divn_Status, Comp_Status
INTO :Divn_Name, v_Divn_Status, v_Comp_Status
FROM M_Company, M_Division
WHERE Comp_code = Divn_Comp_code
AND Divn_Comp_Code = :Global.Company
AND Divn_Code = :TH_Divn_Code;
If Nvl(v_Comp_Status,'O') = 'L' Then
Show_Message('Alert1','Company Locked');
Raise Form_Trigger_Failure;
End If;
If Nvl(v_Divn_Status,'O') = 'L' Then
Show_Message('Alert1','Division Locked');
Raise Form_Trigger_Failure;
End If;
:Global.TD_Divn_Code := :TH_Divn_Code;
:Global.TD_Dept_Code := Null;
End If;What you getClause Rule Language
on change of TH_DIVN_CODE when filled: exists in DIVISIONS else "Invalid Division code" set DIVN_NAME from DIVN_NAME deny when COMP_STATUS = 'L' else "Company Locked" deny when DIVN_STATUS = 'L' else "Division Locked" set GLOBAL.TD_DIVN_CODE to TH_DIVN_CODE set GLOBAL.TD_DEPT_CODE to null # 6 clauses. Nothing refused. # GLOBAL.* lives in the session store, one per browser tab.
verifiedthe rule runs, and a test checks it against the PL/SQL it came from
refusedkept as source text and listed for a person to finish
Real output. A statement that does not convert is listed with its source text, never dropped in silence. The whole vocabulary is on one page.
What arrives, and what waits for a person
We tell you what did not convert before you sign.
A form’s logic lives in its triggers and program units, and no converter reads all of it. Ours says exactly which parts it read, which it refused, and why, so the work left for your team is sized before the pilot and not in month three.
ScreensEvery form drawn as it was, on the day the XML is dropped
RulesValidation that reads whole becomes a rule with a test behind it
WorklistWhat was refused, grouped by reason, with the PL/SQL beside it
EditorYour team finishes the list with the original code on the same screen
Nothing is dropped in silence. A statement the converter cannot express keeps its source text and its place in the list, and the screen it belongs to still draws. This is what that looks like, on the invoice line’s save check: one call converts, one is refused, and the refusal says why.
What you haveWHEN-VALIDATE-RECORD
Declare
v_qty number(15,3);
Begin
If :InvI_Item_Code Is Not Null
And :InvI_Uom_Code Is Not Null Then
v_qty := NVL(:Invi_Qty * :Max_Loose, 0)
+ NVL(:Invi_Loose, 0)
+ NVL(:Invi_Foc_Qty * :Max_Loose, 0)
+ NVL(:Invi_Foc_Loose, 0);
Proc_Validate_Qty(v_qty); --To Prevent saving zero Qty.
VALIDATE_INVOICE;
End If;
End;What you getClause Rule Language
on save insert, update of T_INV_ITEM when INVI_ITEM_CODE is filled and INVI_UOM_CODE is filled: call PROC_VALIDATE_QTY( nvl(INVI_QTY * MAX_LOOSE, 0) + nvl(INVI_LOOSE, 0) + nvl(INVI_FOC_QTY * MAX_LOOSE, 0) + nvl(INVI_FOC_LOOSE, 0)) # 1 statement did not convert. # VALIDATE_INVOICE; # a procedure of this form whose body cannot be read whole. # No part of it is inlined; no guard is dropped in silence.
converteda clause the converter wrote from the PL/SQL, run by the same engine
refusedkept as source text, with its reason, and listed for a person to finish
Real output. The procedure it refused is one line in the worklist, with this reason and the original code beside it, and the invoice screen still draws. Every trigger that converts in part is on one page, with its reasons.
Deployment
Connect to the Oracle you run. Leave it when you choose.
The screens are the same either way. What changes is where the rows live, and whether the licence renewal is still yours to pay.
Available at launch
Oracle-connected
We read and write the database you already run. Nothing moves, nothing is copied, and Forms keeps working beside us while your users switch over one screen at a time.
The migration, designed for
PostgreSQL
Your rules already run on either database, because they are ours rather than Oracle’s. When you are ready, the data follows them and the licence stops.
Before the pilot
What it will not do yet.
Every one of these is measured on the corpus. We would rather you read them here than find them in month three.
- PrintingEmbedded Java beans and report launches have no web equivalent. They need a replacement designed, not converted; a form with one draws the button and says so.
- Hidden logicA form is not self-contained. Many of its procedures call database packages that live outside the form file, and those must be captured from your database before anything can read them.
- Query modeEnter-query in the grid, F11 and Ctrl+F11, is designed and not built. Until it is, searching is a picker and a filter, not the block’s own cells.
- Full automationThe converter does the mechanical part and hands you the rest as a list. A person finishes it. Anyone promising otherwise has not counted their triggers.
Start with one form
Drop an export. Read the worklist. Then decide.
Export any form with frmf2xml, drop it in the visualizer and look at the screen beside the list of what did not convert. If the screen looks like yours and the list looks finishable, the pilot is one Oracle connection away.
